Hardware

Easy7

The pre-configured FRITZ!Box 5530 reduces your installation effort to a minimum. Other routers are not compatible.

Fiber7, Crossover7, Hybrid7 and Copper7

Depending on the service, we recommend certain hardware. However, with us you can choose your router freely. Please note our compatibility requirements in case you use other hardware.

Hardware

ServiceSpeedHardware
Easy7 / Zattoo Home1 Gbit/s
Fiber725 Gbit/s
Fiber710 Gbit/s
Hybrid7 (P2P)1 Gbit/s
Media converter: TP-Link MC220L
Hybrid7 (P2MP)10 Gbit/s
Media converter: Nokia XS-010X-Q
Crossover71 Gbit/s
Media converter: TP-Link MC220L
Copper7up to 500 Mbit/s

FRITZBox 5530

FRITZ!Box 5530

Compatible with: Easy7 (and Zattoo Home), Crossover7, Hybrid7 (network topology: P2P, P2MP)

Crossover7, Hybrid7: CHF 222 incl. VAT Easy7 (and Zattoo Home): CHF 0 (loan device)

  • WLAN radio networks according to 802.11ax (5 GHz; 2.4 GHz)
  • Wi-Fi 6 (WLAN AX) up to 2400 Mbit/sec + 600 Mbit/sec
  • 1x 2.5 Gbit and 2x 1 Gbit Ethernet LAN ports
  • SFP slot for a FRITZ!SFP fibre optic module up to 1 Gbit/sec
  • integrated DECT base
  • incl. 3 m patch cord

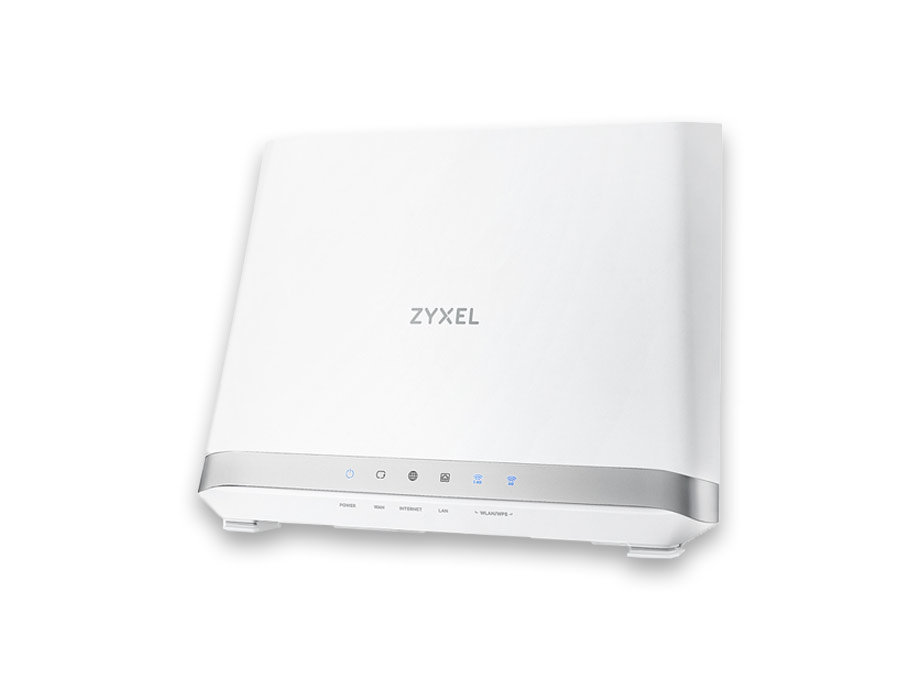

Zyxel XMG3927

Zyxel XMG3927

Compatible with: Copper7 (G.Fast and VDSL)

CHF 222 incl. VAT

  • G.Fast- or VDSL line
  • 4 Ethernet LAN ports
  • WLAN
  • 1 USB port for printers and storage media
  • speed: up to 500 Mbit/sec (Copper7 G.Fast), up to 100 Mbit/sec (Copper7 VDSL)
  • incl. 1.5m LAN cable
  • incl. 1.5m Rj11 cable for G.Fast- or VDSL connection
  • bridge mode possible

Zyxel

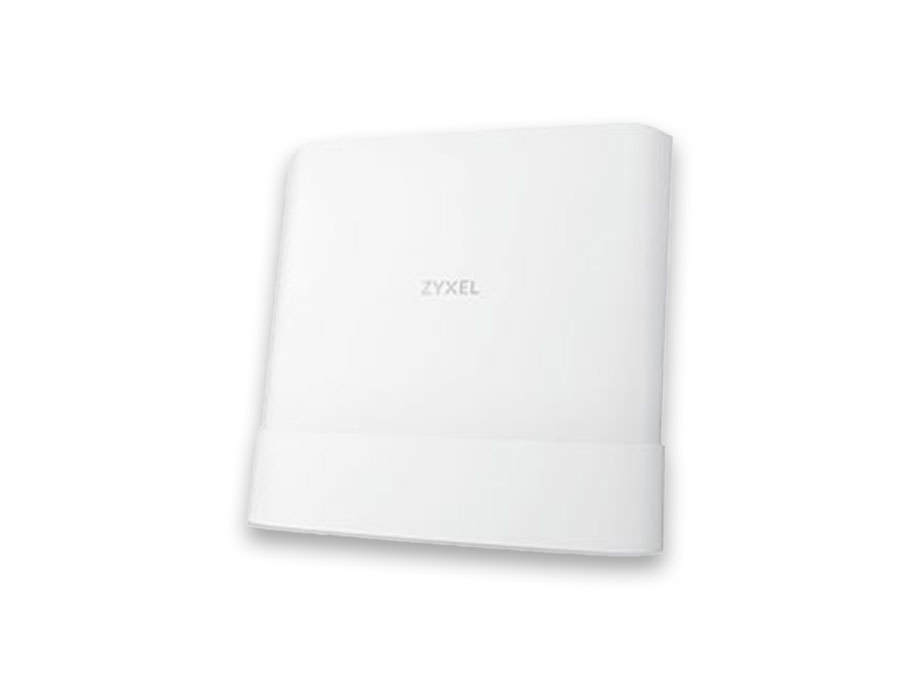

Zyxel AX7501-B1

Compatible with: Fiber7 10 Gbit/s; Hybrid 7 (network topology: P2MP)

CHF 333 incl. VAT

  • with SFP+ that supports both passive and active fiber
  • 4x4 dual-band WiFi 6 (11ax) WLAN 5 GHz and 2.4 GHz
  • 1x 10Gbit Ethernet and 4x 1Gbit Ethernet LAN ports
  • 2x VoIP ports
  • 1x USB 3.0 port
  • required firmware Fiber7 10 Gbit/s (P2P): version V517ABPC3B2
  • required firmware Hybrid7 (P2MP): The version must be approved for use in the Swisscom network.

MikroTik

MikroTik CCR2004-1G-12S +2XS

Compatible with: Fiber7 25 Gbit/s, Fiber7 10 Gbit/s

CHF 777 incl. VAT

  • no WLAN
  • 12 SFP+ slots
  • 2 SFP28 slots
  • incl. SFP optic and patch cable (LC/PC - LC/APC):
    • Fiber7 25 Gbit/s: SFP28 BIDI LR, 10 km, TX1270/RX1330 nm, LC-Simplex, Singlemode
    • Fiber7 10 Gbit/s: SFP+ BIDI LR, 10 km, TX1270/RX1330 nm, LC-Simplex, Singlemode
  • throughput: up to 15 Gbit/sec

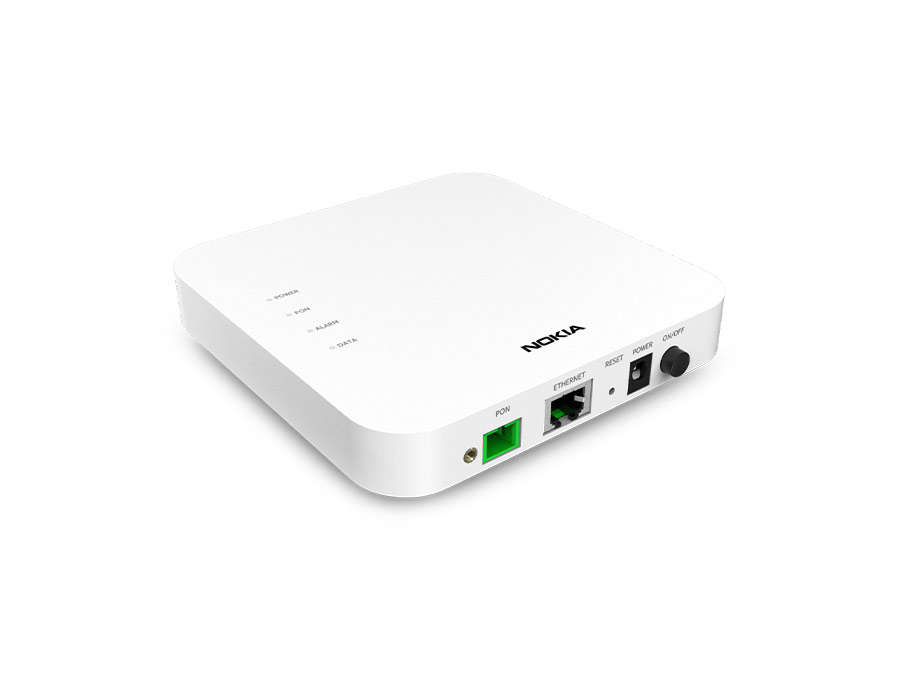

Nokia XS-010X-Q

Nokia XS-010X-Q (XGS-PON bridge)

Compatible with: Hybrid7 (network topology: P2MP)

CHF 255 incl. VAT

  • 1 x SFP slot – fibre optic included
  • 1x 10 Gbit LAN
  • incl. 2m patch cable and power cord

TP-Link MC220L

TP-Link MC220L

Compatible with: Crossover7, Hybrid7 (network topology: P2P)

CHF 111 incl. VAT

  • 1x SFP slot
  • 1x RJ45 port (1000 Base-T)
  • incl. SFP optic (10km, TX1310/RX1490-1550 nm)
  • incl. 3m fibre-optic patch cable (Singlemode Simplex LC/APC-LC/PC)

patch cable

Fibre optic and patch cable

Fiber7 25 Gbit/s: CHF 222 incl. VAT
Fiber7 10 Gbit/s: CHF 99 incl. VAT
Crossover7, Hybrid7: CHF 77 incl. VAT

If you wish to order only the fibre optic and the patch cable, we will need the precise details for your router (SFP compatibility).

Compatibility requirements

There are also other compatible products, as long as the requisite «bi-di» fibre optic technology conforms to the following specifications (recommended: Flexoptix (1G, 10G, 25G), more router information):

  • Simplex single-mode cable as patch cable LC/PC to LC/APC, compatible with SFP optic
    • Fiber7 25 Gbit/s: 25G SFP28 BIDI LR, 10 km, TX1270/RX1330 nm, LC-Simplex, Singlemode
    • Fiber7 10 Gbit/s: 10G SFP+ BIDI LR, 10 km, TX1270/RX1330 nm, LC-Simplex, Singlemode *Crossover7/Hybrid7 (P2P): 1 Gbit Singlefiber SFP Transceiver (10 km/TX1310/RX1490-1550 nm)

Longer cables (6m, 15m) are available on request.
